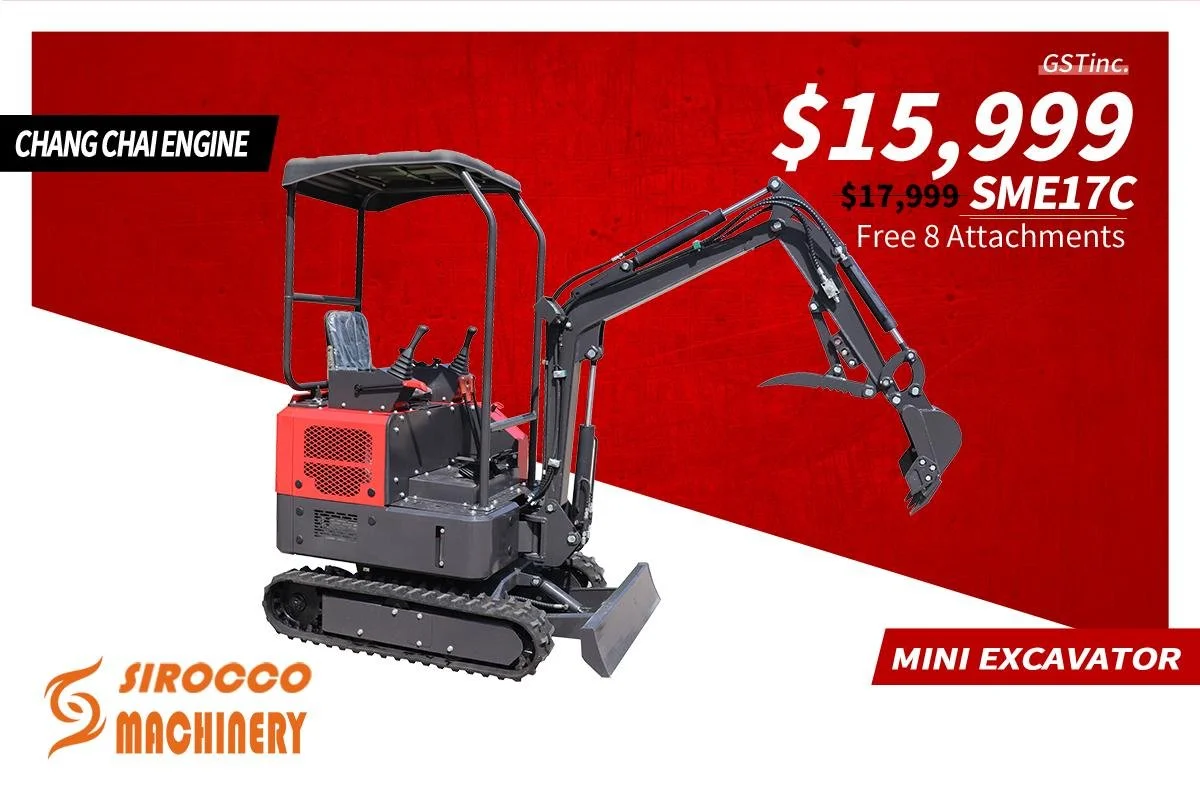

ChangChai Engine SME17C Excavator Swing Boom with 8 Attachments
General Specifications
Operating Weight: 1680 kg
Bucket Capacity: 0.03 m³
Working Device Form: Excavator
Weight: 1300KG
Engine Specifications
Model: Changchai ZN390Q
Rated Output Power/Speed: 28.5 KW
Maximum Torque: 2200 r/min
Performance
Maximum Travel Speed: 4 km/h
Slewing Speed: 9 rpm
Maximum Climbing Ability: 30°
Maximum Digging Force: 8 KN
Dimensions
Total Length (Transportation): 2480 mm
Total Width: 1120 mm
Total Height (with/without ceiling): 2320/2150 mm
Bulldozer Blade Width: 1120 mm
Bulldozer Blade Height: 220 mm
Maximum Cleaning Depth: 240 mm
Maximum Ground Clearance Height: 150 mm
Caterpillar Band Center Distance: 910 mm
Standard Caterpillar Band Board Width: 200 mm
Platform Clearance: 410 mm
Standard Bucket Width (with/without side teeth): 380/415 mm
Total Length of Caterpillar Band: 1440 mm
Caterpillar Band
Ground Pressure: 0.4 kgf/cm²
Caterpillar Band Material: Rubber
Tension Type: Screw tension
Hydraulic System
Hydraulic Pump Type: Gear pump
Hydraulic Tank Capacity: 22.5 L
Engine Oil Capacity: 5 L
Fuel Tank Capacity: 13.8 L
Working Pressure: 13 MP
Flow: 22 L/min
Operating Parameters
Maximum Excavation Height: 2700 mm
Maximum Unloading Height: 1850 mm
Maximum Excavation Depth: 1900 mm
Maximum Vertical Arm Excavation Depth: 1800 mm
Maximum Excavation Distance: 2920 mm
Minimum Turning Radius at Front End: 1680 mm
